Description

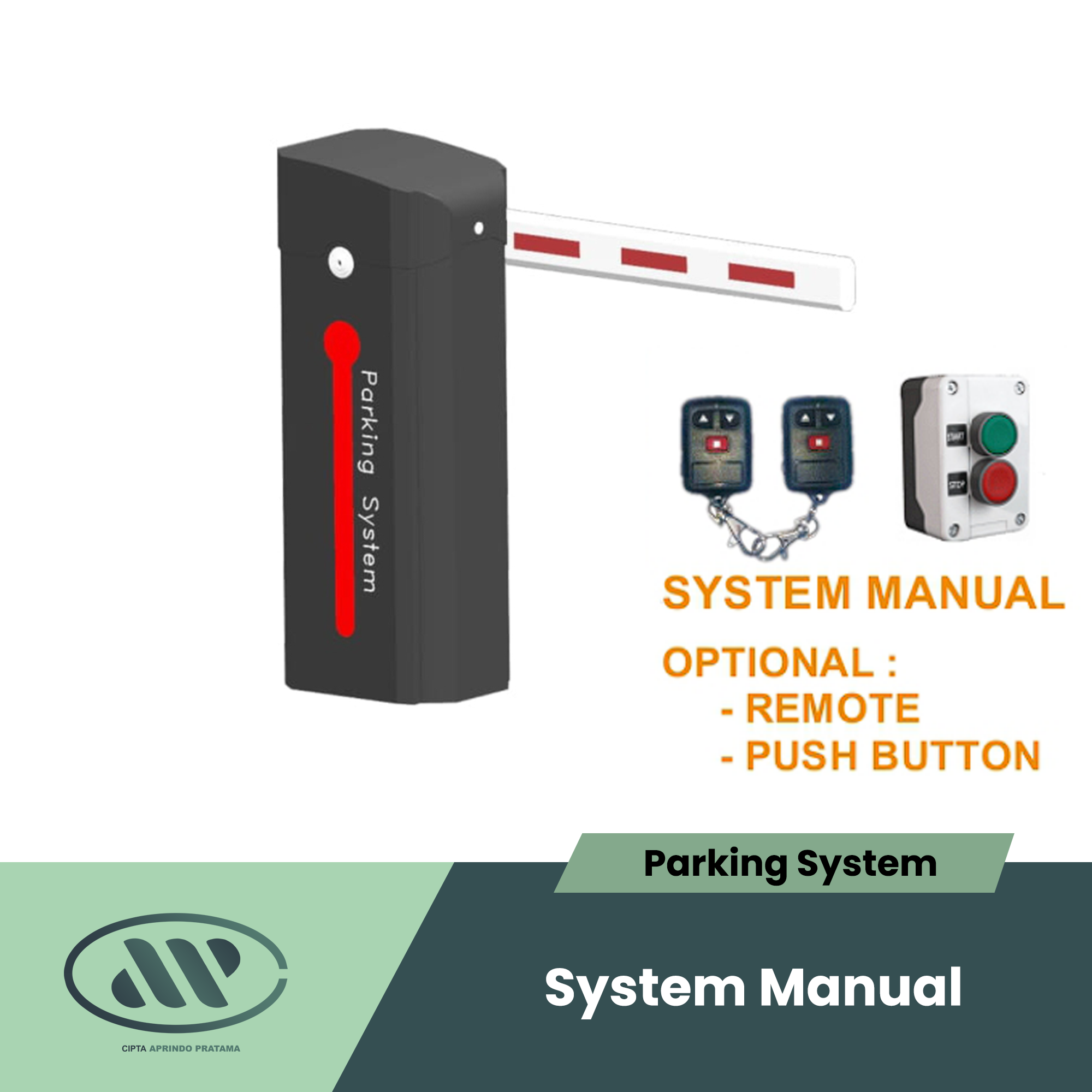

Vechile Barrier Gate
- Rated Voltage : AC 90V ~ AC 264V, DC 24V, 50/60Hz
- Working Speed : 0.3s, 0.6s, 0.9s, 2s, 4s, 6s.
- Motor Power : 50W, Max 100Watts
- Boom Length : 2 Meter to 6 Meter (Max)
- Working Temperature : -40 C ~ 85 C
- Housing Size : 352 x 302 x 1000 x 2mm (L*W*H*TH)
- Housing Material : cold rolled steel sheet 2.0mm
- Lifetime : > 10 Million Times or 10 Years
- MTTR : < 0.5 Hour
- MTBF : > 5 Million
- Protection Grade : IP 65
- Motor Speed : 3000 r/min
- Relative Humidity : < 90%
- Running Noise : < 50 dB
- Surface Finishing : Outdoor Metal Powder Electrostatic Spraying
- Power Supply : 220V + 10% 50/60Hz – 110V + 10% 50/60Hz
- Electric Motor : Single Phase BI – DIRECTIONAL
- Rated Power : 120W/100W
- Humidity : < 90%
- Thermal Protection : 120 C
- On Motor Operating Temperature : -35 to 75
- Body Treatment : CATAPHORESIS
- Color : Orange
- Protection Class : IP 44
- Dimensions : 340 x 280 x 935
- Material Thickness : 1.5mm
- Boom Profile : Alumunium Hollow Profile Retractable Type for 6 M.
